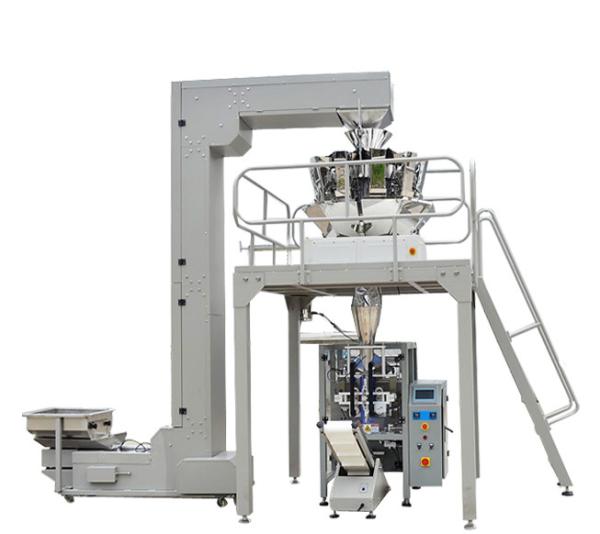

220V Food Grade Granule Packing Machine Color Touch Screen Display Founded

Place of Origin : Shanghai, China (Mainland)

Brand Name : JB

Certification : CE

Price : US $2,800-5,000 / Sets | 1 Set/Sets powder filling machine (Min. Order)

MOQ : 1 Set/Sets p

Model Number : JB-420Z

Supply Ability : 30 sets per month

Delivery Time : 25 working days

Packaging Details : wooden box

Type : Filling Machine

Condition : New

Application : Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Other

Packaging Type : Bags, Barrel, Bottles, Cartons, Pouch

Packaging Material : Glass, Paper, Plastic, Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Power : 1.8W

Dimension(L*W*H) : 3500*1500*1900

Weight : 500KG

After-sales Service Provided : Engineers available to service machinery overseas

Product name : YB-F1 automatic powder filling machine

filling speed : 5-20p/min

filling range : 10-1000ml

Filling accuracy : ≤±1.5%

Power supply : 1ph AC 220V ,3Ph 380V 50/60HZ

Net weight : 500KG

Machine dimension : 3500*1500*1900

Warranty : 1 year

Certificate : CE

Contact Now

JB-420Z Automatic Food Grade High Speed Pecans hickory nut Packing Machine

Function and Features:

1. This machine can finish measuring, and filling and capping for powder or fine granule products, such a s veterinary drugs, additives,

glucose, carbon powder, talcum powder, pesticide powder, essence, etc.

2. C ombined-type transparent material hopper , easy dismantle and clean without tools.

3. Adopts servo motor drive s piral, has advantages of high weighing precision , not easy to wear, and stable performance, etc.

4. Use advanced PLC control system, color touch screen display.

5. F or multiple dust material, discharging mouth can be installed dust collection device.

6 . D ischarging mouth has automatic locking device, prevent leakage of material.

7. Machine body and all parts contact product are made by stainless steel, full compliance with GMP standard.

Technical Parameter

Model	JAWBONE-420Z	JAWBONE-520Z	JAWBONE-720Z
Packing speed	20-60bags/min	10-60bags/min	5-55bags/min
Packing volume	10g-1kg	50g-2kg	100g-5kg
Film width	Max 420mm	Max 520mm	Max 720mm
Making bag size	L:60-300mm,W:80-200mm	L:80-400mm,W:150-250mm	L:80-450mm,W:200-350mm
Thickness of film roll	0.04-0.09mm	0.04-0.09mm	0.04-0.09mm
Pulling film type	Double belt pull film	Double belt pull film	Double belt pull film
Packing accuracy	<=±1%	<=±1%	<=±1%
Power	2.5kw	2.5kw	3.0kw
Power supply	AC220V,50/60Hz	AC220V,50/60Hz	AC220V,50/60Hz
Seal type	Pillow seal,Gusset bag,Block bottom bag	Pillow seal,Gusset bag,Block bottom bag	Pillow seal,Gusset bag,Block bottom bag
Main machine net weight	450kg	550kg	700kg
Machine machine dimension	L1320XW920XH1390mm	L1500XW1140XH1540mm	L1800XW1250XH1780mm
